A80S300 FRP MEMBRANE HOUSINGS

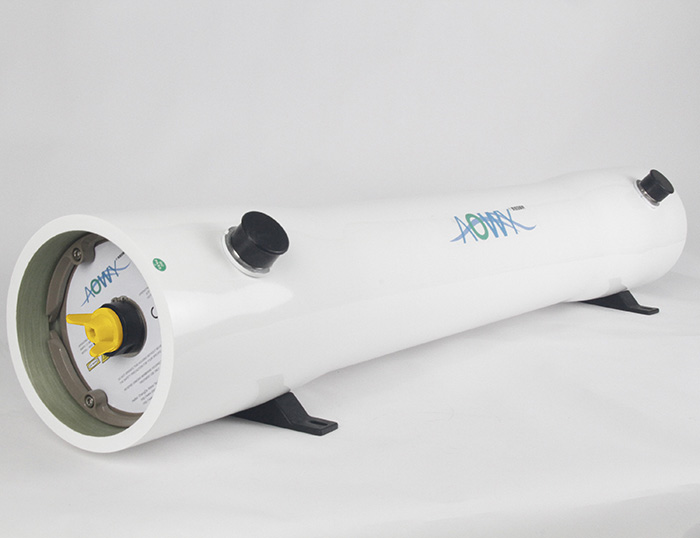

AOWY FRP membrane housing pressure vessels

Side Entry Design

Available in 300 psi pressure rating only!

Accommodates standard make 6" Membrane Element

Element length: 40" x (1-6)

Applicable to: DOW, HYDRANAUTICS, OSMONICS, KOCH, TORAY, CSM, VONTRON, BDX, etc.

Standard: ISO9001, CE, NSF, ISO14001

220913 Drawing of A80S300-AOWY FRP RO membrane housings-Chengda water.pdf

Key Features:

Operating Temp Range: -10°C ---49°C

Internal permeate port not to exceed 125PSI (0.88MPa)

Operating pH Range: 3 – 11

Cleaning pH Range: 2 – 12 (less than 30 minutes)

Mirror inner wall and bright surface.

Multi-ports options

White color is as standard. Customized colors are also available.

Quality Assurance

Hydro-static Leakage Test Pressure:

Standard:

100% test, not sampling

— 100,000 times cyclic fatigue test

— Burst test with 6 times of its operating pressure

— 100% QA test with 1.1x design hydraulic pressure.

ASME: 1.1x Design Pressure

— 100% QA inspection and cleaning before final

packaging and delivery to customers.

— Submitted for NSF standard 61

Applications:

Aowy membrane housing pressure vessels are widely used for low pressure 300Psi ro systems in industrial wastewater treatment, seawater desalination, brackish water desalination, RO system for electronics, electric power, food & beverage, metallurgy, chemical, pharmaceutical and other fields.

Notice:

Please operate in accordance with User Guide!

All information is subject to change without prior notice. Please contact us for the latest product information and specifications.
